MAC-70-2900-0050-7 Macurco

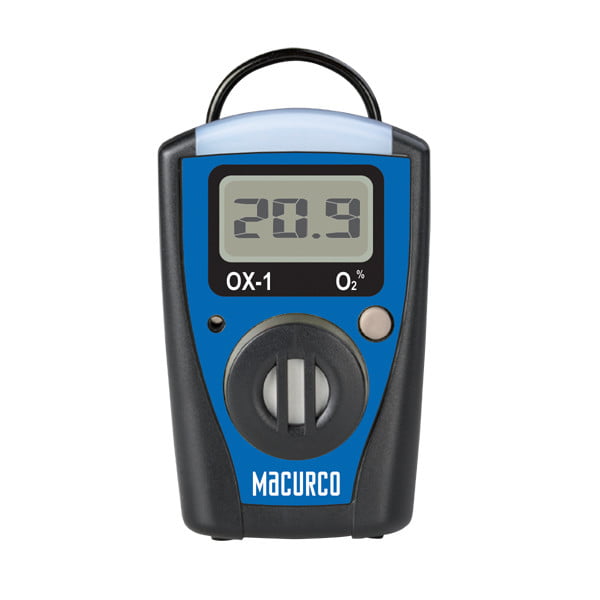

The Macurco Single-Gas Monitor Series is designed to continuously monitor the area around it and notify whoever is near once the level of the target gas reaches the alarm set point. This device has a two year runtime, and can be disposed of easily within the local guidelines. The Macurco Single-Gas Monitor is available in three versions CM-1, HS-1 and OX-1 to monitor either Carbon Monoxide (CO), Hydrogen Sulfide (H2S) or Oxygen (O2). The components of the Macurco Single-Gas Monitor are assembled in an ABS/PC plastic housing. Located on the front face of the unit is an ON/MENU button, the display (LCD), sensor inlet, audio alarm opening, visual alarm LED. On the back of the instrument is an alligator pocket/belt clip and a label containing the intrinsic safety information and serial number. An internal microprocessor controls the detection and alarm functions in response to the signals received from an electrochemical sensor permanently mounted inside the unit. When turned on, it continuously monitors the air around it, through the sensor inlet opening by the process of passive diffusion. If the level of the target gas detected by the sensor reaches a preset alarm point, the unit will alarm.
